LM536355QRNLRQ1


YeeHing #: Y012-LM536355QRNLRQ1
Inventory: 3000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM536355QRNLRQ1 Texas Instruments - Yeehing Electronics

3.5-A, 36-V synchronous, 2.1-MHz, automotive step-down DC-DC converter

Pricing (USD)

Quantity Unit Price
1 — 99 4.098
100 — 249 3.341
250 — 999 2.626
1,000 + 1.78

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT

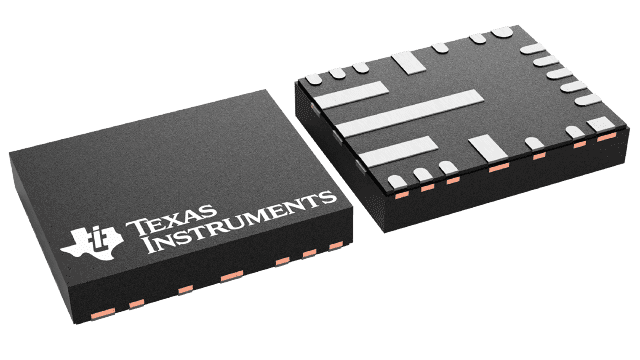

Package / Case VQFN-HR-22
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 150 C
Qualification AEC-Q100
Series LM53635-Q1
Packaging Reel
Operating Temperature Range - 40 C to + 150 C
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Current 18 uA
Product Type Switching Voltage Regulators
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM536355QRNLRQ1 Datasheet

More Information

The LM53625-Q1/LM53635-Q1 synchronous buck regulator is optimized for automotive applications, providing an output voltage of 5 V, 3.3 V, or an adjustable output. Advanced high-speed circuitry allows the LM53625-Q1/LM53635-Q1 to regulate from an input of 18 V to an output of 3.3 V at a fixed frequency of 2.1 MHz. Innovative architecture allows this device to regulate a 3.3-V output from an input voltage of only 3.55 V. All aspects of the LM53625-Q1/LM53635-Q1 are optimized for automotive and performance-driven industrial customers. An input voltage range up to 36 V, with transient tolerance up to 42 V, eases input surge protection design. The automotive-qualified Hotrod QFN package with wettable flanks reduces parasitic inductance and resistance while increasing efficiency, minimizing switch node ringing, and dramatically lowering electromagnetic interference (EMI). An open-drain reset output, with built-in filtering and delay, provides a true indication of system status. This feature negates the requirement for an additional supervisory component, saving cost and board space. Seamless transition between PWM and PFM modes and low quiescent current (only 15 µA for the 3.3 V option) ensure high efficiency and superior transient responses at all loads.
