LM53635NQRNLRQ1 Texas Instruments - Yeehing Electronics

3.5-A, 36-V synchronous, 2.1-MHz, automotive step-down DC-DC converter

Pricing (USD)

Quantity	Unit Price
1 — 99	4.098
100 — 249	3.341
250 — 999	2.626
1,000 +	1.78

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

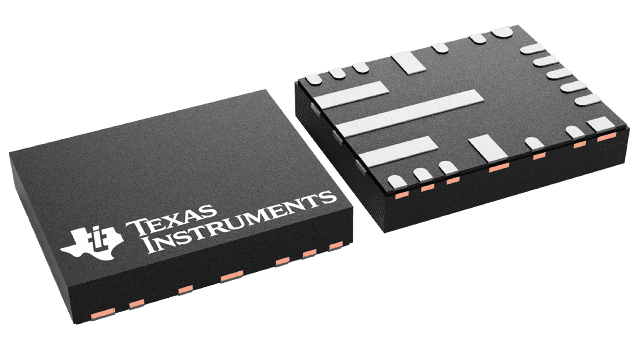

Package / Case	VQFN-HR-22
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 150 C
Qualification	AEC-Q100
Series	LM53635-Q1
Packaging	Reel
Operating Temperature Range	- 40 C to + 150 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	18 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM53635NQRNLRQ1 Datasheet

More Information

The LM53625-Q1/LM53635-Q1 synchronous buck regulator is optimized for automotive applications, providing an output voltage of 5 V, 3.3 V, or an adjustable output. Advanced high-speed circuitry allows the LM53625-Q1/LM53635-Q1 to regulate from an input of 18 V to an output of 3.3 V at a fixed frequency of 2.1 MHz. Innovative architecture allows this device to regulate a 3.3-V output from an input voltage of only 3.55 V. All aspects of the LM53625-Q1/LM53635-Q1 are optimized for automotive and performance-driven industrial customers. An input voltage range up to 36 V, with transient tolerance up to 42 V, eases input surge protection design. The automotive-qualified Hotrod QFN package with wettable flanks reduces parasitic inductance and resistance while increasing efficiency, minimizing switch node ringing, and dramatically lowering electromagnetic interference (EMI). An open-drain reset output, with built-in filtering and delay, provides a true indication of system status. This feature negates the requirement for an additional supervisory component, saving cost and board space. Seamless transition between PWM and PFM modes and low quiescent current (only 15 µA for the 3.3 V option) ensure high efficiency and superior transient responses at all loads.
