LM5575Q0MHX/NOPB


YeeHing #: Y012-LM5575Q0MHX/NOPB
Inventory: 6000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM5575Q0MHX/NOPB Texas Instruments - Yeehing Electronics

75V, 1.5A Step-Down Switching Regulator

Pricing (USD)

Quantity Unit Price
1 — 99 5.884
100 — 249 4.797
250 — 999 3.77
1,000 + 2.56

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT

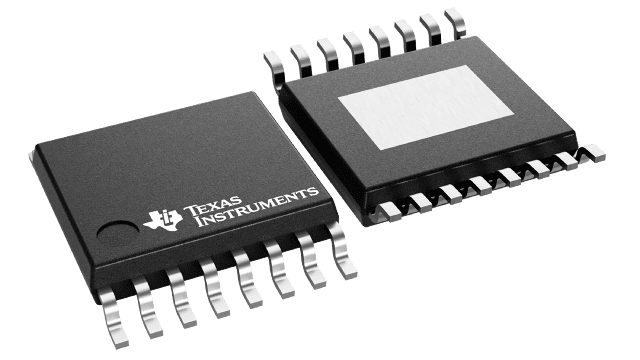

Package / Case HTSSOP-16
Topology Buck
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series LM5575-Q1
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Type Voltage Converter
Brand Texas Instruments
Product Type Switching Voltage Regulators
Factory Pack Quantity 2500
Subcategory PMIC - Power Management ICs
Unit Weight 0.002212 oz

For more information, please refer to datasheet

Documents

LM5575Q0MHX/NOPB Datasheet

More Information

The LM5575-Q1 is an easy-to-use buck regulator that allows design engineers to design and optimize a robust power supply using a minimum set of components. Operating with an input voltage range of 6 V to 75 V, the LM5575-Q1 delivers 1.5 A of continuous output current with an integrated 330-mΩ N-channel MOSFET. The regulator utilizes an emulated current mode architecture which provides inherent line regulation, tight load-transient response, and ease-of-loop compensation without the usual limitation of low-duty cycles associated with current mode regulators. The operating frequency is adjustable from 50 kHz to 500 kHz to allow optimization of size and efficiency. The LM5575-Q1 ensures robustness with cycle-by-cycle current limit, short-circuit protection, thermal shutdown, and remote shutdown. The device is available in a power enhanced 16-pin HTSSOP package featuring an exposed die attach pad for thermal dissipation. The LM5575-Q1 is supported by the full suite of WEBENCH® on-Line design tools. For AEC-Q100 grade 1 and grade 0 orderable numbers, see the orderable addendum at the end of this data sheet.
