Texas Instruments

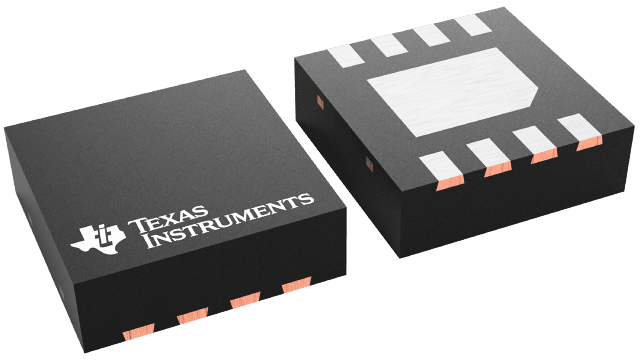

LM57BISDX-5/NOPB
LM57BISDX-5/NOPB
Regular price
$0.63 USD
Regular price
Sale price
$0.63 USD
Unit price
per
Couldn't load pickup availability
LM57BISDX-5/NOPB Texas Instruments - Yeehing Electronics
±0.7°C Temperature Sensor with Resistor-Programmable Temperature Switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.77 |
| 100 — 249 | 1.462 |
| 250 — 999 | 1.05 |
| 1,000 + | 0.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Temperature Sensors |
| RoHS | Y |
| Output Type | Digital, Analog |
| Configuration | Local |
| Accuracy | +/- 0.95 C, +/- 1.5 C |
| Supply Voltage - Min | 2.4 V |
| Supply Voltage - Max | 5.5 V |
| Interface Type | - |
| Resolution | - |
| Minimum Operating Temperature | - 50 C |
| Maximum Operating Temperature | + 150 C |
| Shutdown | No Shutdown |
| Temperature Threshold | Programmable |
| Mounting Style | SMD/SMT |
| Package / Case | WSON-8 |
| Product | Single Trip Switch with Sensor |
| Packaging | Reel |
| Output Current | 5 mA |
| Series | LM57 |
| Brand | Texas Instruments |
| Gain | - 5.166 mV / C to - 12.924 mV / C |
| Moisture Sensitive | Yes |
| Operating Supply Current | 24 uA |
| Product Type | Temperature Sensors |
| Factory Pack Quantity | 4500 |
| Subcategory | Sensors |
| Unit Weight | 0.000667 oz |
For more information, please refer to datasheet
Documents
| LM57BISDX-5/NOPB Datasheet |
More Information
The LM57 device is a precision, dual-output, temperature switch with analog temperature sensor output for wide temperature industrial applications. The trip temperature (TTRIP) is selected from 256 possible values in the range of –40°C to +150°C. The VTEMP is a class AB analog voltage output that is proportional to temperature with a programmable negative temperature coefficient (NTC). Two external 1% resistors set the TTRIP and VTEMP slope. The digital and analog outputs enable protection and monitoring of system thermal events.
