LM57CISD-10/NOPB Texas Instruments - Yeehing Electronics
±0.7°C Temperature Sensor with Resistor-Programmable Temperature Switch
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.77 |
100 — 249 | 1.462 |
250 — 999 | 1.05 |
1,000 + | 0.55 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -50 |
Maximum Operating Temperature | 150 |
Factory Pack Quantity | 1,000 |

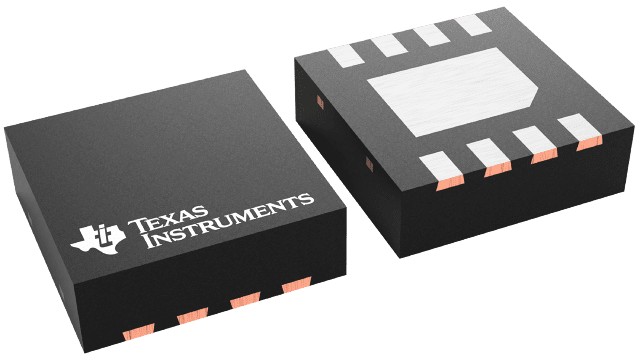

Package | Pins | WSON (NGR) | 8 |
For more information, please refer to datasheet
Documents
LM57CISD-10/NOPB Datasheet |
More Information
The LM57 device is a precision, dual-output, temperature switch with analog temperature sensor output for wide temperature industrial applications. The trip temperature (TTRIP) is selected from 256 possible values in the range of –40°C to +150°C. The VTEMP is a class AB analog voltage output that is proportional to temperature with a programmable negative temperature coefficient (NTC). Two external 1% resistors set the TTRIP and VTEMP slope. The digital and analog outputs enable protection and monitoring of system thermal events.
