Description

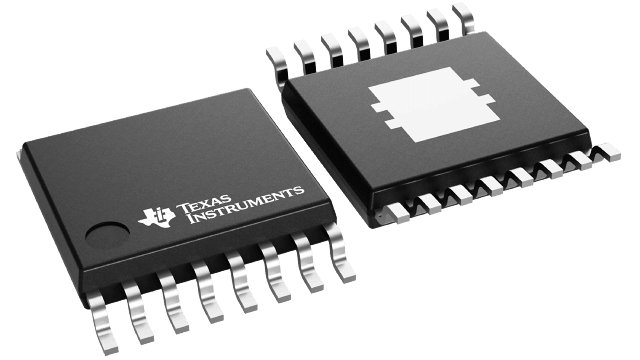

LM63610DQPWPRQ1 Texas Instruments - Yeehing Electronics
3.5-V to 36-V, 1.0-A step-down voltage converter with spread spectrum
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.8 |
| 100 — 249 | 2.313 |
| 250 — 999 | 1.661 |
| 1,000 + | 0.88 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM63610DQPWPRQ1 Datasheet |
More Information
The LM63610-Q1 regulators are a family of easy-to-use, synchronous, step-down DC/DC converters designed for rugged automotive applications. The LM63610-Q1 can drive up to 1 A of load current from an input of up to 36 V. The converter has high light load efficiency and output accuracy in a small solution size. Features such as a RESET flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. Integration eliminates many external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LM63610-Q1 is available in both the HTSSOP 16-pin power package, with PowerPAD™, and the WSON 12-pin power package. Please contact Texas Instruments for availability of the WSON package.
