Description

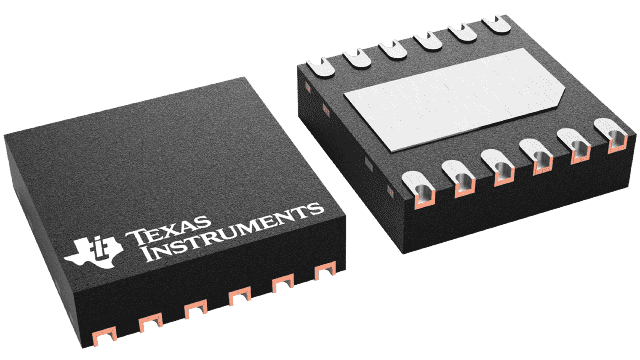

LM63615DQDRRRQ1 Texas Instruments - Yeehing Electronics
3.5-V to 36-V, 1.5-A step-down voltage converter with spread spectrum
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.688 |
| 100 — 249 | 2.22 |
| 250 — 999 | 1.595 |
| 1,000 + | 3.43 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM63615DQDRRRQ1 Datasheet |
More Information
The LM636x5-Q1 is an easy-to-use, synchronous, step-down DC/DC converter designed for rugged automotive applications. The LM636x5-Q1 can drive up to 1.5-A or 2.5-A of load current from an input of up to 36 V. The converter has high light load efficiency and output accuracy in a small solution size. Features such as a RESET flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency while maintaining tight load regulation. Integration eliminates many external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycle-by-cycle current limit, and hiccup short-circuit protection. The LM636x5-Q1 is available in the HTSSOP 16-pin power package, with PowerPAD™ , and the WSON 12-pin power package.
