Description

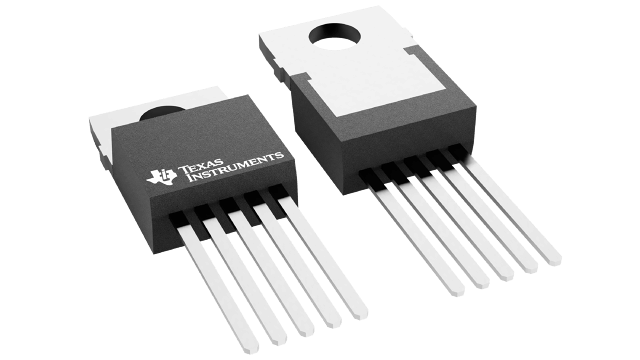

LM675T/LF02 Texas Instruments - Yeehing Electronics
Power Operational Amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.355 |
100 — 249 | 3.551 |
250 — 999 | 2.791 |
1,000 + | 1.66 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | Through Hole |
Package / Case | TO-220-5 |
Supply Voltage - Max | 60 V |
Output Current per Channel | 3 A |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 5.5 MHz |
SR - Slew Rate | 8 V/us |
CMRR - Common Mode Rejection Ratio | 70 dB to 90 dB |
Ib - Input Bias Current | 2 uA |
Vos - Input Offset Voltage | 10 mV |
Supply Voltage - Min | 16 V |
Operating Supply Current | 18 mA |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Shutdown | No Shutdown |
Series | LM675 |
Packaging | Tube |
Features | Decompensated |
Height | 8.89 mm |
Length | 10.16 mm |
Product | Operational Amplifiers |
Supply Type | Single, Dual |
Technology | Bipolar |
Width | 4.7 mm |
Brand | Texas Instruments |
Dual Supply Voltage | +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V |
en - Input Voltage Noise Density | 16 nV/sqrt Hz |
In - Input Noise Current Density | 0.22 pA/sqrt Hz |
Maximum Dual Supply Voltage | +/- 30 V |
Minimum Dual Supply Voltage | +/- 8 V |
Operating Supply Voltage | 18 V, 24 V, 28 V |
Pd - Power Dissipation | 30000 mW |
Product Type | Op Amps - Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 70 dB |
Factory Pack Quantity | 45 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 90 dB |
Unit Weight | 0.105822 oz |
For more information, please refer to datasheet
Documents
LM675T/LF02 Datasheet |
More Information
The LM675 is a monolithic power operational amplifier featuring wide bandwidth and low input offset voltage, making it equally suitable for AC and DC applications.
