Description
LM71CISD/NOPB Texas Instruments - Yeehing Electronics
±1.5°C Temperature Sensor with SPI Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.611 |
| 100 — 249 | 1.33 |
| 250 — 999 | 0.956 |
| 1,000 + | 0.58 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Temperature Sensors |
| RoHS | Y |
| Output Type | Digital |
| Configuration | Local |
| Accuracy | - 2 C to + 3 C |
| Supply Voltage - Min | 2.6 V |
| Supply Voltage - Max | 5.5 V |
| Interface Type | 3-Wire, Microwire, SPI |
| Resolution | 13 bit |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Shutdown | Shutdown |
| Mounting Style | SMD/SMT |

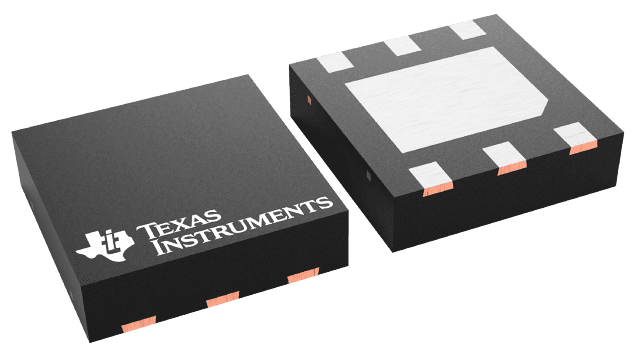

| Package / Case | WSON-6 |
| Product | Sensor |
| Packaging | Reel |
| Series | LM71 |
| Brand | Texas Instruments |
| Operating Supply Current | 300 uA |
| Product Type | Temperature Sensors |
| Factory Pack Quantity | 1000 |
| Subcategory | Sensors |
| Unit Weight | 0.000688 oz |
For more information, please refer to datasheet
Documents
| LM71CISD/NOPB Datasheet |
More Information
The LM71 is a low-power, high-resolution digital temperature sensor with an SPI and MICROWIRE compatible interface, available in the 5-pin SOT-23 or the 6-pin WSON (no pull back) package. The host can query the LM71 at any time to read temperature. Its low operating current is useful in systems where low power consumption is critical.
