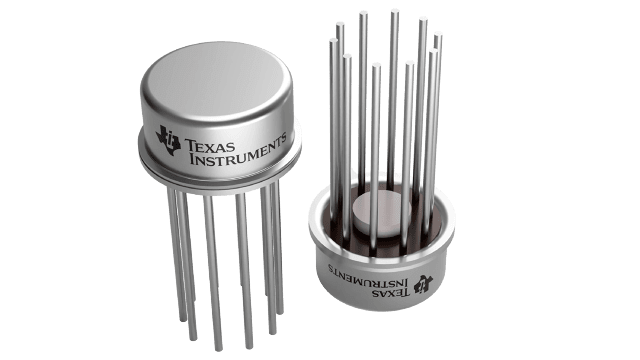

LM723CH Texas Instruments - Yeehing Electronics

150 mA Adjustable Output Linear Regulator / LDO

Pricing (USD)

Quantity	Unit Price
1 — 99	10.959
100 — 249	8.934
250 — 999	7.022
1,000 +	4.76

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-100
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	2 V to 37 V
Output Current	150 mA
Output Type	Adjustable
Input Voltage MAX	40 V
Input Voltage MIN	9.5 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Load Regulation	0.2 %
Line Regulation	0.5 %
Series	LM723C-MIL
Packaging	Bulk
Operating Temperature Range	0 C to + 70 C
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	86 dB
Pd - Power Dissipation	800 mW
Product Type	Linear Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

LM723CH Datasheet

More Information

The LM723/LM723C is a voltage regulator designed primarily for series regulator applications. By itself, it will supply output currents up to 150 mA; but external transistors can be added to provide any desired load current. The circuit features extremely low standby current drain, and provision is made for either linear or foldback current limiting.
