Texas Instruments
LM723E/883
LM723E/883
Regular price
$22.88 USD
Regular price
Sale price
$22.88 USD
Unit price
per
Couldn't load pickup availability
LM723E/883 Texas Instruments - Yeehing Electronics
Military Grade 150mA Adjustable Output Linear Regulator / LDO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 50.013 |
| 100 — 249 | 44.456 |
| 250 — 999 | 36.545 |
| 1,000 + | 22.88 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -55 |
| Maximum Operating Temperature | 125 |
| Factory Pack Quantity | 50 |

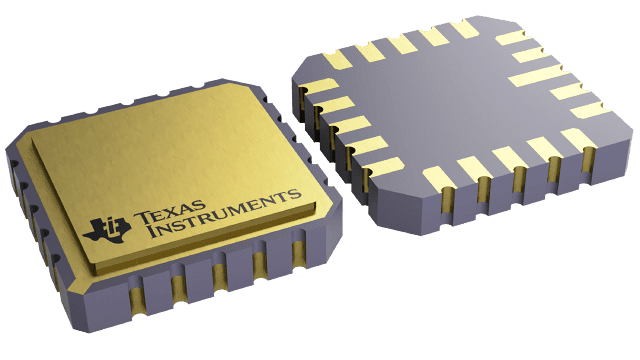

| Package | Pins | LCCC (NAJ) | 20 |
For more information, please refer to datasheet
Documents
| LM723E/883 Datasheet |
More Information
The LM723 is a voltage regulator designed primarily for series regulator applications. By itself, it will supply output currents up to 150 mA; but external transistors can be added to provide any desired load current. The circuit features extremely low standby current drain, and provision is made for either linear or foldback current limiting.
