LM73605RNPR Texas Instruments - Yeehing Electronics

3.5V to 36V, 5A Synchronous Step-Down Voltage Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.846
100 — 249	3.135
250 — 999	2.464
1,000 +	2.40

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

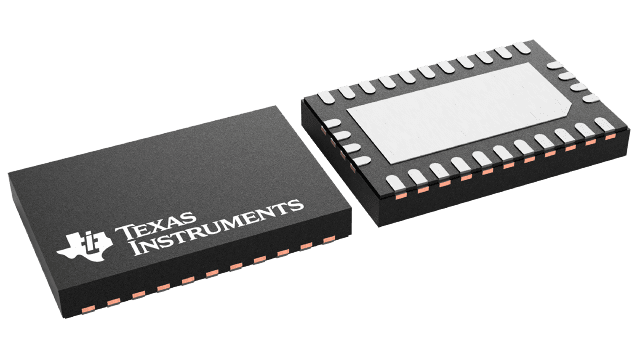

Package / Case	WQFN-30
Output Voltage	1 V to 34.2 V
Output Current	5 A
Number of Outputs	1 Output
Input Voltage MAX	36 V
Topology	Buck
Input Voltage MIN	3.5 V
Switching Frequency	350 kHz to 2.2 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM73605
Packaging	Reel
Input Voltage	3.5 V to 36 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	0.6 uA
Type	Step-Down Voltage Converter
Brand	Texas Instruments
Shutdown	Shutdown
Moisture Sensitive	Yes
Operating Supply Current	600 nA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3.5 V

For more information, please refer to datasheet

Documents

LM73605RNPR Datasheet

More Information

The LM73605 and LM73606 family of devices are easy-to-use synchronous step-down DC/DC converters capable of driving up to 5 A or 6 A of load current from a supply voltage ranging from 3.5 V to 36 V. The LM73605 and LM73606 provide exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization to an external clock, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency over the entire load range. Protection features include thermal shutdown, cycle-by-cycle current limiting, and short-circuit protection. The devices are pin-to-pin compatible for easy current scaling. The new product, LM61460-Q1, offers higher efficiency, lower stand-by quiescent current, and improved EMI performance. See the device comparison table to compare specifications. Start a Webench design with LM61460-Q1. Use the LMZM33606 module for faster time to market.
