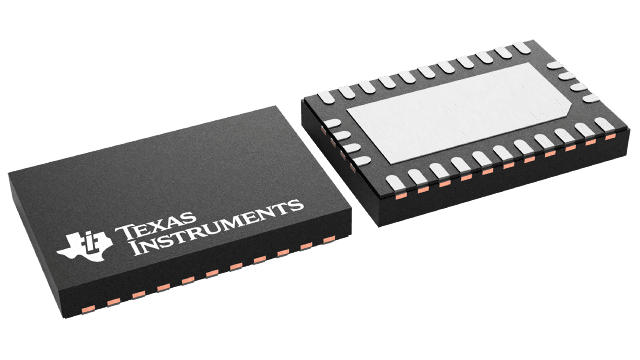

LM73605RNPT Texas Instruments - Yeehing Electronics

3.5V to 36V, 5A Synchronous Step-Down Voltage Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	4.615
100 — 249	3.762
250 — 999	2.957
1,000 +	1.76

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

LM73605RNPT Datasheet

More Information

The LM73605 and LM73606 family of devices are easy-to-use synchronous step-down DC/DC converters capable of driving up to 5 A or 6 A of load current from a supply voltage ranging from 3.5 V to 36 V. The LM73605 and LM73606 provide exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization to an external clock, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load improves efficiency over the entire load range. Protection features include thermal shutdown, cycle-by-cycle current limiting, and short-circuit protection. The devices are pin-to-pin compatible for easy current scaling. The new product, LM61460-Q1, offers higher efficiency, lower stand-by quiescent current, and improved EMI performance. See the device comparison table to compare specifications. Start a Webench design with LM61460-Q1. Use the LMZM33606 module for faster time to market.
