Description

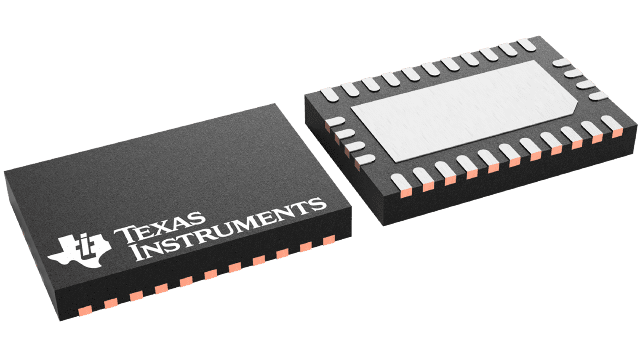

LM73606QURNPRQ1 Texas Instruments - Yeehing Electronics
Automotive qualified 3.5-V to 36-V, 6-A synchronous step-down voltage converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.465 |
| 100 — 249 | 4.455 |
| 250 — 999 | 3.502 |
| 1,000 + | 2.08 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM73606QURNPRQ1 Datasheet |
More Information
The LM73605-Q1/LM73606-Q1family of devices are easy-to-use synchronous step-down DC/DC converters capable of driving up to 5 A (LM73605-Q1)or 6 A (LM73606-Q1) of load current from a supply voltage ranging from 3.5 V to 36 V. The LM73605-Q1/LM73606-Q1 provide exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization to an external clock, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency over the entire load range. The family requires few external components and has a pinout designed for simple PCB layout with optimal EMI and thermal performance. Protection features include thermal shutdown, input undervoltage lookout, cycle-cy-cycle current limiting, and hiccup short-citcuit protection. The LM73605-Q1 and LM73606-Q1 devices are pin-to-pin compatible for easy current scaling.
