LM73606RNPT
LM73606RNPT
Couldn't load pickup availability

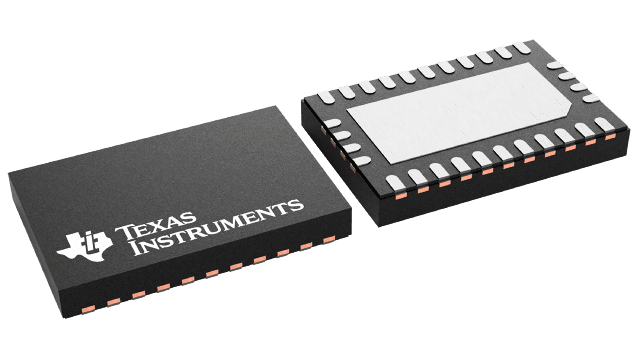

LM73606RNPT Texas Instruments - Yeehing Electronics
3.5V to 36V, 6A Synchronous Step-Down Voltage Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.557 |
| 100 — 249 | 4.53 |
| 250 — 999 | 3.561 |
| 1,000 + | 2.11 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-30 |
| Output Voltage | 1 V to 34 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 36 V |
| Topology | Buck |
| Input Voltage MIN | 3.5 V |
| Switching Frequency | 350 kHz to 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM73606 |
| Packaging | Reel |
| Input Voltage | 3.5 V to 36 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 15 uA |
| Type | Step-Down Voltage Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3.5 V |
| Unit Weight | 0.002018 oz |
For more information, please refer to datasheet
