Texas Instruments
LM741J
LM741J
Regular price
$6.21 USD
Regular price
Sale price
$6.21 USD
Unit price
per
Couldn't load pickup availability

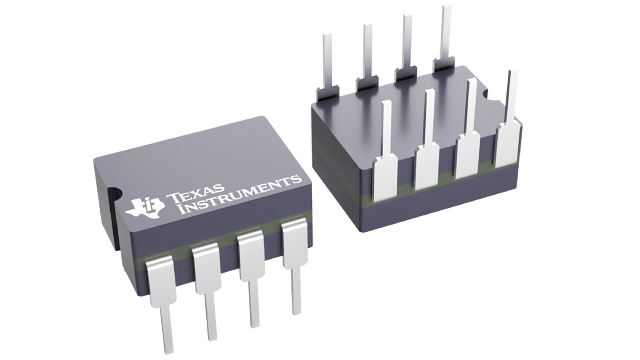

LM741J Texas Instruments - Yeehing Electronics
Military-grade, single, 44-V, 1-MHz operational amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 14.729 |
| 100 — 249 | 12.866 |
| 250 — 999 | 9.92 |
| 1,000 + | 6.21 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | N |
| Mounting Style | Through Hole |
| Package / Case | CDIP-8 |
| Supply Voltage - Max | 44 V |
| Output Current per Channel | 25 mA |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 1 MHz |
| SR - Slew Rate | 0.5 V/us |
| CMRR - Common Mode Rejection Ratio | 70 dB to 90 dB |
| Ib - Input Bias Current | 80 nA |
| Vos - Input Offset Voltage | 3 mV |
| Supply Voltage - Min | 10 V |
| Operating Supply Current | 1.7 mA |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | LM741-MIL |
| Packaging | Tube |
| Height | 4.57 mm |
| Length | 10.16 mm |
| Product | Operational Amplifiers |
| Supply Type | Dual |
| Technology | Bipolar |
| Width | 7.87 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V |
| en - Input Voltage Noise Density | 30 nV/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 22 V |
| Minimum Dual Supply Voltage | +/- 5 V |
| Operating Supply Voltage | 10 V to 44 V |
| Pd - Power Dissipation | 500 mW (1/2 W) |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 40 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 106.02 dB |
| Unit Weight | 0.042121 oz |
For more information, please refer to datasheet
Documents
| LM741J Datasheet |
More Information
The LM741-MIL is a general-purpose operational amplifier which features improved performance over industry standards such as the LM709. It is a direct, plug-in replacement for the 709C, LM201, MC1439, and 748 in most applications.
