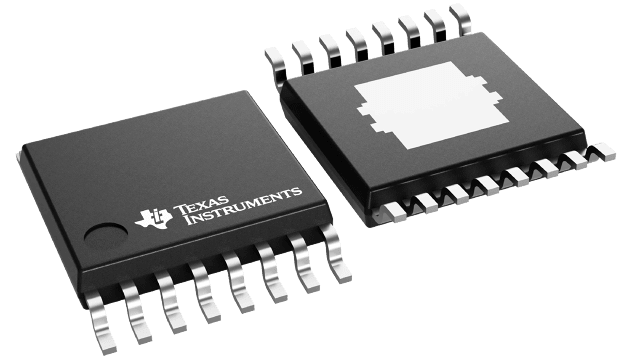

LM74202QPWPRQ1 Texas Instruments - Yeehing Electronics
4.2-V to 40-V, 2.2A 300uA IQ automotive ideal diode with Integrated FET
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.836 |
100 — 249 | 1.609 |
250 — 999 | 1.128 |
1,000 + | 0.64 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
LM74202QPWPRQ1 Datasheet |
More Information
The LM74202-Q1 device is a compact, feature-rich 40-V integrated ideal diode with a full suite of protection features. The wide supply input range allows control of 12-V automotive battery driven applications. The device withstands and protects the loads from positive and negative supply voltages up to ±40 V. Load, source and device protection are provided with many programmable features including overcurrent, inrush current control, overvoltage and undervoltage thresholds. The internal robust protection control blocks along with the 40-V rating of the device simplifies the system design for ISO standard pulse tesing.
