Texas Instruments
LM74CITP-3/NOPB
LM74CITP-3/NOPB
Regular price
$0.78 USD
Regular price
Sale price
$0.78 USD
Unit price
per
Couldn't load pickup availability
LM74CITP-3/NOPB Texas Instruments - Yeehing Electronics
±1.25°C Temperature Sensor with SPI Interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.258 |
| 100 — 249 | 1.979 |
| 250 — 999 | 1.387 |
| 1,000 + | 0.78 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Board Mount Temperature Sensors |
| RoHS | Y |
| Output Type | Digital |
| Configuration | Local |
| Accuracy | +/- 1.25 C, +/- 2.1 C, +/- 3 C |
| Supply Voltage - Min | 2.6 V |
| Supply Voltage - Max | 5.5 V |
| Interface Type | 3-Wire, Microwire, SPI |
| Resolution | 12 bit |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Shutdown | Shutdown |
| Mounting Style | SMD/SMT |

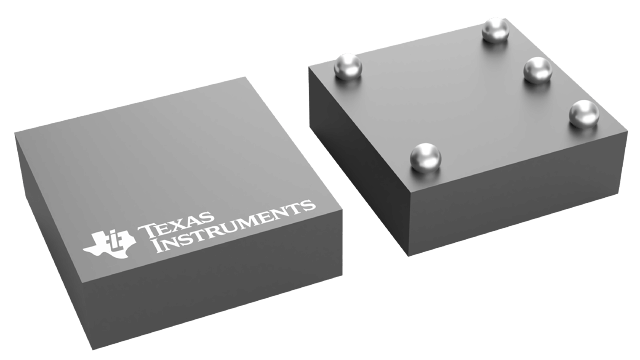

| Package / Case | DSBGA-5 |
| Product | Temperature Sensor |
| Packaging | Reel |
| Series | LM74 |
| Brand | Texas Instruments |
| Operating Supply Current | 265 uA |
| Product Type | Temperature Sensors |
| Factory Pack Quantity | 250 |
| Subcategory | Sensors |
| Unit Weight | 0.000078 oz |
For more information, please refer to datasheet
Documents
| LM74CITP-3/NOPB Datasheet |
More Information
The LM74 is a temperature sensor, Delta-Sigma analog-to-digital converter with an SPI and MICROWIRE compatible interface. The host can query the LM74 at any time to read temperature. A shutdown mode decreases power consumption to less than 10 μA. This mode is useful in systems where low average power consumption is critical.
