LM76002QRNPTQ1 Texas Instruments - Yeehing Electronics
3.5V to 60V 3.5A/2.5A Synchronous Voltage Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.19 |
| 100 — 249 | 3.416 |
| 250 — 999 | 2.685 |
| 1,000 + | 1.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

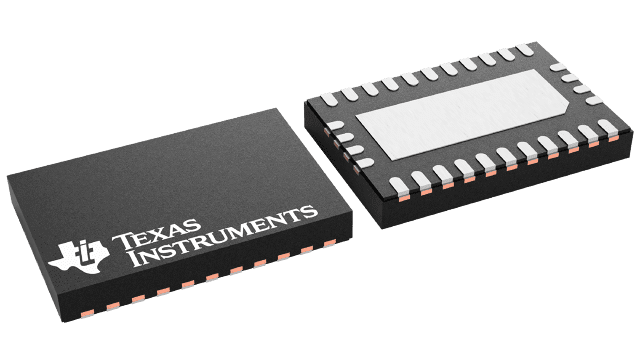

| Package / Case | WQFN-30 |
| Output Voltage | 1 V to 57 V |
| Output Current | 2.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 60 V |
| Topology | Buck |
| Input Voltage MIN | 3.5 V |
| Switching Frequency | 300 kHz to 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | LM76002-Q1 |
| Packaging | Reel |
| Input Voltage | 3.5 V to 60 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Quiescent Current | 15 uA |
| Type | Synchronous Step Down Voltage Regulator |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | LM76002EVM-500K |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 3.5 V |
| Tradename | Simple Switcher |
| Unit Weight | 0.002018 oz |
For more information, please refer to datasheet
Documents
| LM76002QRNPTQ1 Datasheet |
More Information
The LM76002-Q1/LM76003-Q1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2.5 A (LM76002-Q1) or 3.5 A (LM76003-Q1) of load current from an input up to 60 V. The LM76002-Q1/LM76003-Q1 provides exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization, FPWM option, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency. This device requires few external components and has a pinout designed for simple PCB layout with best-in-class EMI (CISPR25) and thermal performance. Protection features include input undervoltage lockout, thermal shutdown, cycle-by-cycle current limit, and short-circuit protection. The LM76002-Q1/LM76003-Q1 device is available in the WQFN 30-pin leadless package with wettable flanks.
