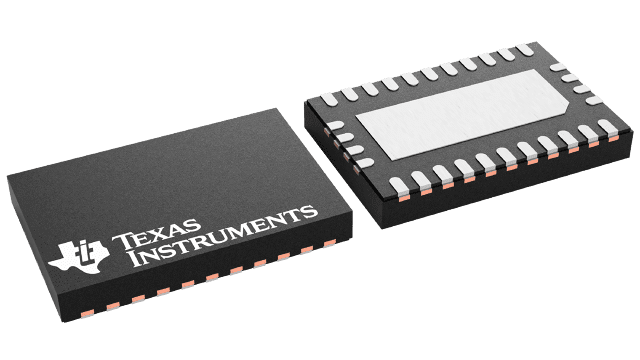

LM76002RNPT Texas Instruments - Yeehing Electronics

3.5V to 60V, 2.5A Synchronous Step-Down Voltage Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.643
100 — 249	2.97
250 — 999	2.334
1,000 +	1.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	WQFN-30
Output Voltage	1 V to 57 V
Output Current	2.5 A
Number of Outputs	1 Output
Input Voltage MAX	60 V
Topology	Buck
Input Voltage MIN	3.5 V
Switching Frequency	300 kHz to 2.2 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	LM76002
Packaging	Reel
Input Voltage	3.5 V to 60 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	15 uA
Type	Synchronous Step-Down Voltage Regulator
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	LM76002EVM-500K
Moisture Sensitive	Yes
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	3.5 V
Unit Weight	0.002018 oz

For more information, please refer to datasheet

Documents

LM76002RNPT Datasheet

More Information

The LM76002/LM76003 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2.5 A (LM76002) or 3.5 A (LM76003) of load current from an input up to 60 V. The LM76002/LM76003 provides exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization, FPWM option, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency. This device requires few external components and has a pinout designed for simple PCB layout with best-in-class EMI (CISPR22) and thermal performance. Protection features include input undervoltage lockout, thermal shutdown, cycle-by-cycle current limit, and short-circuit protection. The LM76002/LM76003 device is available in the WQFN 30-pin leadless package with wettable flanks.
