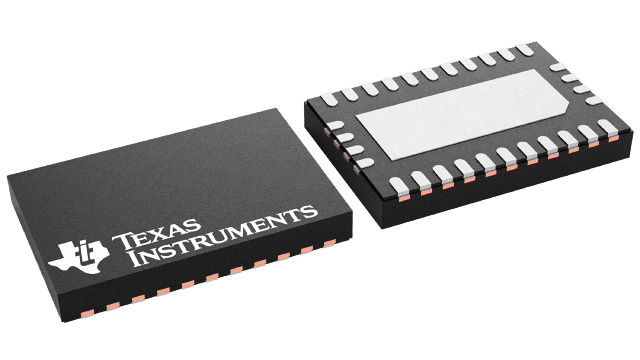

LM76003QRNPRQ1 Texas Instruments - Yeehing Electronics
3.5V to 60V 3.5A/2.5A Synchronous Voltage Regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.18 |
100 — 249 | 3.408 |
250 — 999 | 2.679 |
1,000 + | 1.59 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 150 C |
Series | LM76003-Q1 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 150 C |
Brand | Texas Instruments |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 3000 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
LM76003QRNPRQ1 Datasheet |
More Information
The LM76002-Q1/LM76003-Q1 regulator is an easy-to-use synchronous step-down DC-DC converter capable of driving up to 2.5 A (LM76002-Q1) or 3.5 A (LM76003-Q1) of load current from an input up to 60 V. The LM76002-Q1/LM76003-Q1 provides exceptional efficiency and output accuracy in a very small solution size. Peak current-mode control is employed. Additional features such as adjustable switching frequency, synchronization, FPWM option, power-good flag, precision enable, adjustable soft start, and tracking provide both flexible and easy-to-use solutions for a wide range of applications. Automatic frequency foldback at light load and optional external bias improve efficiency. This device requires few external components and has a pinout designed for simple PCB layout with best-in-class EMI (CISPR25) and thermal performance. Protection features include input undervoltage lockout, thermal shutdown, cycle-by-cycle current limit, and short-circuit protection. The LM76002-Q1/LM76003-Q1 device is available in the WQFN 30-pin leadless package with wettable flanks.
