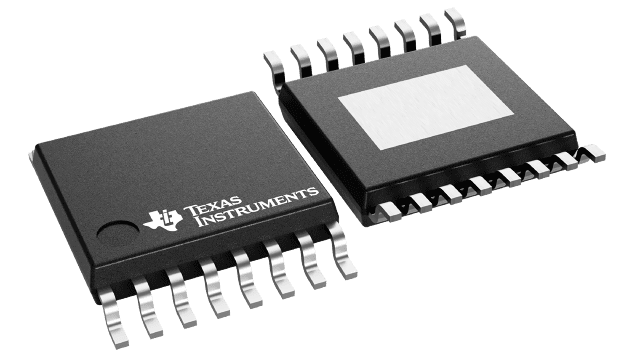

LM76202QPWPRQ1 Texas Instruments - Yeehing Electronics
4.2-V to 60-V, 2.2A 300uA IQ automotive ideal diode with Integrated FET
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.026 |
| 100 — 249 | 1.775 |
| 250 — 999 | 1.245 |
| 1,000 + | 0.80 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| LM76202QPWPRQ1 Datasheet |
More Information
The LM76202-Q1 device is a compact, feature-rich 60-V integrated ideal diode with a full suite of protection features. The wide supply input range allows control of 12-V and 24-V automotive battery driven applications. The device withstands and protects the loads from positive and negative supply voltages up to ±60 V. Load, source and device protection are provided with many programmable features including overcurrent, inrush current control, overvoltage and undervoltage thresholds. The internal robust protection control blocks along with the 60-V rating of the device simplifies the system design for ISO standard pulse tesing.
