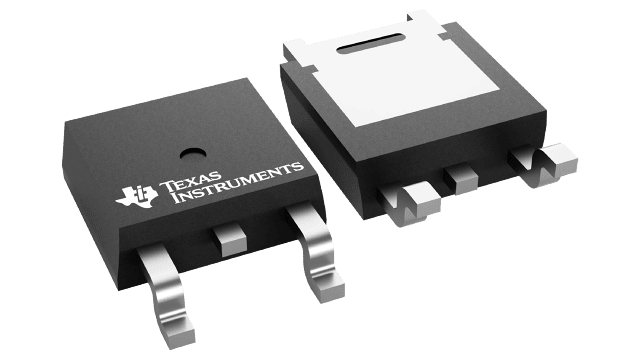

LM78M05CDT/NOPB Texas Instruments - Yeehing Electronics
500-mA, 35-V, linear voltage regulator for 5 V
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.523 |
| 100 — 249 | 1.258 |
| 250 — 999 | 0.904 |
| 1,000 + | 0.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-252-3 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 5 V |
| Output Current | 0.5 A |
| Output Type | Fixed |
| Input Voltage MAX | 35 V |
| Input Voltage MIN | 7.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 100 mV |
| Line Regulation | 100 mV |
| Series | LM78M05 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 78 dB |
| Moisture Sensitive | Yes |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 75 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.063493 oz |
For more information, please refer to datasheet
Documents
| LM78M05CDT/NOPB Datasheet |
More Information
The LM341 and LM78M05 three-pin positive voltage regulators employ built-in current limiting, thermal shutdown, and safe-operating area protection, which makes them virtually immune to damage from output overloads.
