Description

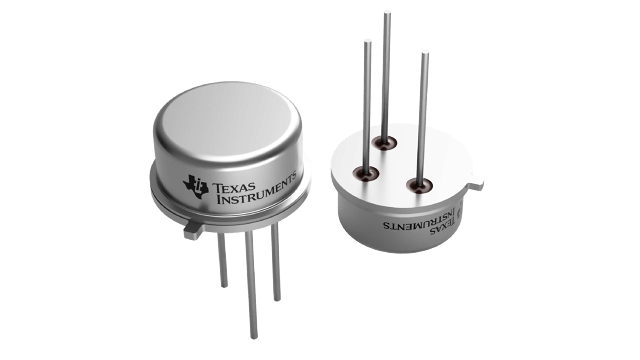

LM78M05CH/NOPB Texas Instruments - Yeehing Electronics
500 mA 5V Fixed Output Linear Regulator / LDO
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.37 |
| 100 — 249 | 12.53 |
| 250 — 999 | 9.848 |
| 1,000 + | 5.85 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-39 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 5 V |
| Output Current | 0.5 A |
| Output Type | Fixed |
| Input Voltage MAX | 35 V |
| Input Voltage MIN | 7.2 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 100 mV |
| Line Regulation | 100 mV |
| Series | LM78M05 |
| Packaging | Bulk |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 78 dB |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LM78M05CH/NOPB Datasheet |
More Information
The LM78M05-MIL three-pin positive voltage regulator employs built-in current limiting, thermal shutdown, and safe-operating area protection, which makes them virtually immune to damage from output overloads.
