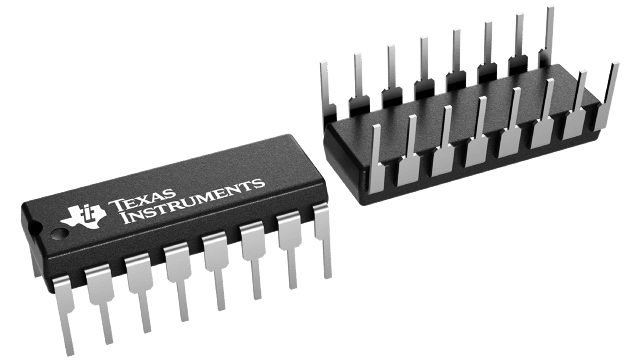

LM78S40CN/NOPB Texas Instruments - Yeehing Electronics
1.5A Adjustable Step Up, Step Down or Inverting Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.599 |
| 100 — 249 | 1.321 |
| 250 — 999 | 0.949 |
| 1,000 + | 0.50 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | PDIP-16 |
| Output Voltage | 1.25 V to 40 V |
| Output Current | 1.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 40 V |
| Topology | Buck, Boost, Flyback, Inverting |
| Input Voltage MIN | 2.5 V |
| Switching Frequency | 0.1 kHz to 100 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LM78 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Step Down |
| Brand | Texas Instruments |
| Load Regulation | 0.2 mV |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 25 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.5 V |
| Unit Weight | 0.057419 oz |
For more information, please refer to datasheet
Documents
| LM78S40CN/NOPB Datasheet |
More Information
The LM78S40 is a monolithic regulator subsystem consisting of all the active building blocks necessary for switching regulator systems. The device consists of a temperature compensated voltage reference, a duty-cycle controllable oscillator with an active current limit circuit, an error amplifier, high current, high voltage output switch, a power diode and an uncommitted operational amplifier. The device can drive external NPN or PNP transistors when currents in excess of 1.5A or voltages in excess of 40V are required. The device can be used for step-down, step-up or inverting switching regulators as well as for series pass regulators. It features wide supply voltage range, low standby power dissipation, high efficiency and low drift. It is useful for any stand-alone, low part count switching system and works extremely well in battery operated systems.
