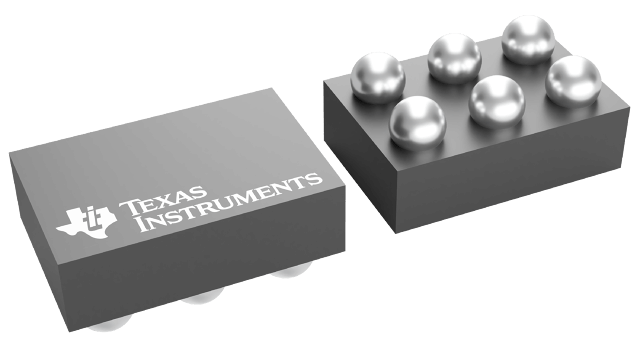

LM79L05ACTLX/NOPB


YeeHing #: Y012-LM79L05ACTLX/NOPB
Inventory: 3400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM79L05ACTLX/NOPB Texas Instruments - Yeehing Electronics

100-mA, negative linear voltage regulator

Pricing (USD)

Quantity Unit Price
1 — 99 0.558
100 — 249 0.429
250 — 999 0.316
1,000 + 0.16

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Linear Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case uSMD
Number of Outputs 1 Output
Polarity Negative
Output Voltage - 5 V
Output Current 100 mA
Output Type Fixed
Input Voltage MAX - 35 V
Input Voltage MIN - 7.3 V
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 70 C
Load Regulation 0.01 %/V
Line Regulation 0.07 %/V
Series LM79L05
Packaging Reel
Operating Temperature Range 0 C to + 70 C
Brand Texas Instruments
PSRR / Ripple Rejection - Typ 50 dB
Product Type Linear Voltage Regulators
Factory Pack Quantity 3000
Subcategory PMIC - Power Management ICs
Unit Weight 0.000078 oz

For more information, please refer to datasheet

Documents

LM79L05ACTLX/NOPB Datasheet

More Information

The LM79LXXAC series of 3-terminal negative voltage regulators features fixed output voltages of −5V, −12V, and −15V with output current capabilities in excess of 100mA. These devices were designed using the latest computer techniques for optimizing the packaged IC thermal/electrical performance. The LM79LXXAC series, when combined with a minimum output capacitor of 0.1μF, exhibits an excellent transient response, a maximum line regulation of 0.07% VO/V, and a maximum load regulation of 0.01% VO/mA.
