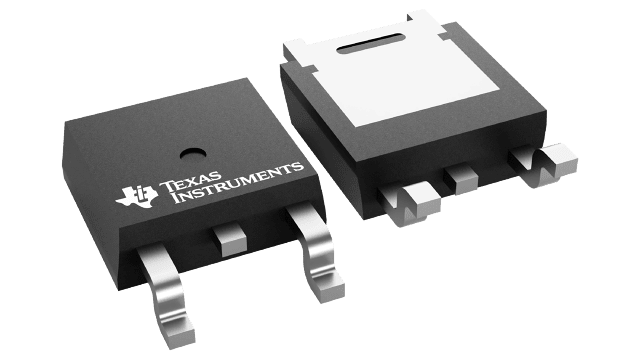

LM9036DTX-5.0/NOPB Texas Instruments - Yeehing Electronics
50-mA, 40-V, low-IQ, low-dropout voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.865 |
100 — 249 | 0.665 |
250 — 999 | 0.49 |
1,000 + | 0.24 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
LM9036DTX-5.0/NOPB Datasheet |
More Information
The LM9036 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 25µA Ground Pin current at a 0.1mA load, the LM9036 is ideally suited for automotive and other battery operated systems. The LM9036 retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM9036 has a 40V maximum operating voltage limit, a −40°C to +125°C operating temperature range, and ±5% output voltage tolerance over the entire output current, input voltage, and temperature range.
