LM94023BITMX/NOPB Texas Instruments - Yeehing Electronics

±1.5°C Temperature Sensor with Multiple Gain, Class-AB Analog Output and WCSP

Pricing (USD)

Quantity	Unit Price
1 — 99	0.716
100 — 249	0.551
250 — 999	0.406
1,000 +	0.23

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-50
Maximum Operating Temperature	150
Factory Pack Quantity	3,000

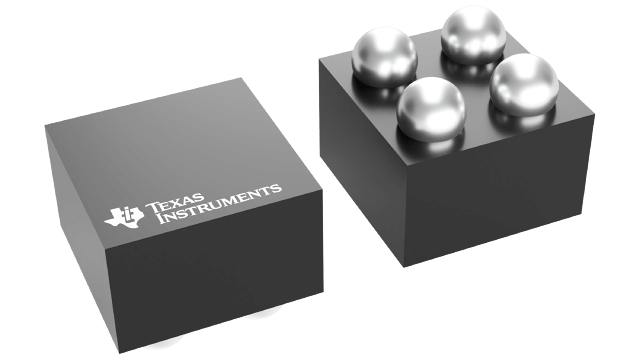

Package | Pins	DSBGA (YFQ) | 4

For more information, please refer to datasheet

Documents

LM94023BITMX/NOPB Datasheet

More Information

The LM94023 is a precision analog output CMOS integrated-circuit temperature sensor that operates at a supply voltage as low as 1.5 Volts. Available in the very small four-bump DSBGA 0.8mm x 0.8mm) the LM94023 occupies very little board area. A class-AB output structure gives the LM94023 strong output source and sink current capability for driving heavy loads, making it well suited to source the input of a sample-and-hold analog-to-digital converter with its transient load requirements, This generally means the LM94023 can be used without external components, like resistors and buffers, on the output. While operating over the wide temperature range of −50°C to +150°C, the LM94023 delivers an output voltage that is inversely porportional to measured temperature. The LM94023's low supply current makes it ideal for battery-powered systems as well as general temperature sensing applications.
