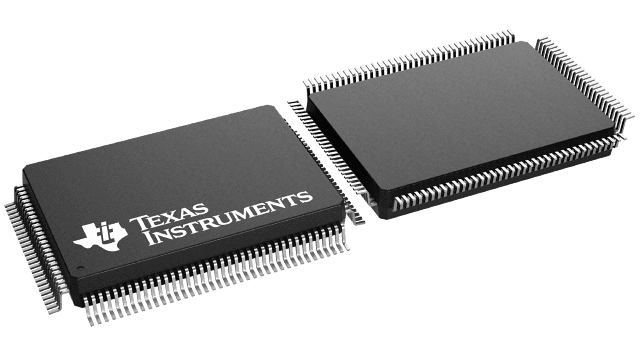

LM97593VH/NOPB Texas Instruments - Yeehing Electronics

Dual ADC / Digital Tuner / AGC

Pricing (USD)

Quantity	Unit Price
1 — 99	54.743
100 — 249	48.661
250 — 999	40.002
1,000 +	25.05

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Up-Down Converters
RoHS	Y
Product	Down Converters
RF Frequency	250 MHz
IF Frequency	300 MHz
Operating Supply Voltage	1.8 V, 3.3 V
Operating Supply Current	78 mA, 121 mA
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	QFP-128
Packaging	Tray
Series	LM97593
Brand	Texas Instruments
Minimum Operating Temperature	- 40 C
Moisture Sensitive	Yes
Pd - Power Dissipation	3.2 W
Product Type	Up-Down Converters
Factory Pack Quantity	66
Subcategory	Wireless & RF Integrated Circuits
Unit Weight	0.032985 oz

For more information, please refer to datasheet

Documents

LM97593VH/NOPB Datasheet

More Information

The LM97593 Dual ADC / Digital Tuner / AGC IC is a two channel digital downconverter (DDC) with integrated 12-bit analog-to-digital converters (ADCs) and automatic gain control (AGC). The LM97593 further enhances TI’s Diversity Receiver Chipset (DRCS) by integrating a wide-bandwidth dual ADC core with the DDC. The complete DRCS includes one LM97593 Dual ADC / Digital Tuner / AGC and two CLC5526 digitally controlled variable gain amplifiers (DVGAs). This system allows direct IF sampling of signals up to 300MHz for enhanced receiver performance and reduced system costs. A block diagram for a DRCS-based narrowband communications system is shown in .
