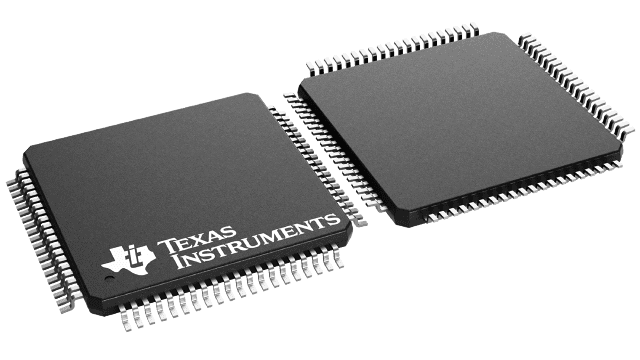

LM98519VHB/NOPB


YeeHing #: Y004-LM98519VHB/NOPB
Inventory: 6400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LM98519VHB/NOPB Texas Instruments - Yeehing Electronics

10-bit 65 MSPS 6 Channel Imaging Signal Processor

Pricing (USD)

Quantity Unit Price
1 — 99 18.513
100 — 249 16.456
250 — 999 13.528
1,000 + 8.47

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog Front End - AFE
RoHS Y
Series LM98519
Type CCD Signal Processor
Resolution 10 bit
Sampling Rate 65 MS/s
Interface Type Serial
Supply Voltage - Max 3.6 V
Supply Voltage - Min 3 V
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 70 C
Mounting Style SMD/SMT
Package / Case TQFP-80
Packaging Tray
Input Type Differential
Brand Texas Instruments
Moisture Sensitive Yes
Pd - Power Dissipation 1.04 W
Product Type Analog Front End - AFE
Reference Voltage 3.3 V
Factory Pack Quantity 119
Subcategory Data Converter ICs
Unit Weight 0.018117 oz

For more information, please refer to datasheet

Documents

LM98519VHB/NOPB Datasheet

More Information

The LM98519 is a fully integrated, high performance 10-Bit, 65 MSPS signal processing solution for digital color copiers, scanners, and other image processing applications. High-speed signal throughput is achieved with an innovative six channel architecture utilizing Correlated Double Sampling (CDS), or Sample and Hold (SH) type sampling. 1x or 2x gain settings are available in the CDS/SH input stage. Each channel has a dedicated 1x to 10x (8 bit) PGA that allows accurate gain adjustment of each channel. The Digital White Level auto calibration loop can automatically set the PGA value to achieve a selected white target level. Each channel also has a ±4-bit coarse and ±10-bit fine analog offset correction DAC that allows offset correction before the sample-and-hold amplifier. These correction values can be controlled by an automated Digital Black Level correction loop. The PGA and offset DACs for each channel are programmed independently allowing unique values of gain and offset for each of the six channels. A 2-to-1 multiplexing scheme routes the signals to three 65-MHz high performance ADCs. The fully differential processing channels achieve exceptional noise immunity, having a very low noise floor of –67.5 dB. The 10-bit analog-to-digital converters have excellent dynamic performance making the LM98519 transparent in the image reproduction chain.
