Texas Instruments

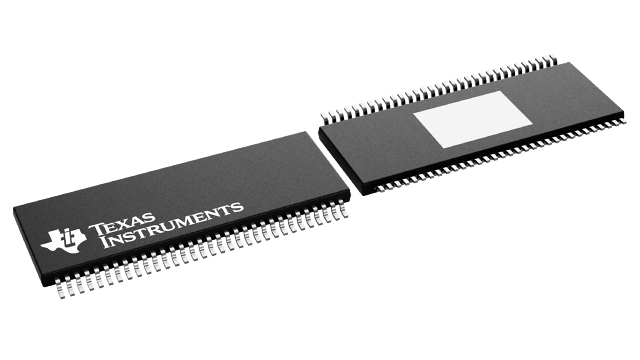

LM98555CCMH/NOPB
LM98555CCMH/NOPB
Regular price
$4.72 USD
Regular price
Sale price
$4.72 USD
Unit price
per
Couldn't load pickup availability
LM98555CCMH/NOPB Texas Instruments - Yeehing Electronics
CCD Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.205 |
| 100 — 249 | 9.788 |
| 250 — 999 | 7.547 |
| 1,000 + | 4.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Display Drivers & Controllers |
| RoHS | Y |
| Series | LM98555 |
| Product | Drivers |
| Display Type | CCD Driver |
| Operating Supply Voltage | 5.8 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP EP |
| Packaging | Tube |
| Height | 0.95 mm |
| Length | 17 mm |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 2 W |
| Product Type | Display Drivers & Controllers |
| Factory Pack Quantity | 28 |
| Subcategory | Driver ICs |
| Supply Voltage - Max | 5.8 V |
| Unit Weight | 0.014092 oz |
For more information, please refer to datasheet
Documents
| LM98555CCMH/NOPB Datasheet |
More Information
The LM98555 is a highly integrated driver circuit intended for CCD driving applications. It combines 25 drivers of varying drive strengths into one chip to provide a complete CCD driving solution. Due to this one-chip integration, optimal skew control is achieved for this demanding application.
