LMC555CTPX/NOPB


YeeHing #: Y003-LMC555CTPX/NOPB
Inventory: 8200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

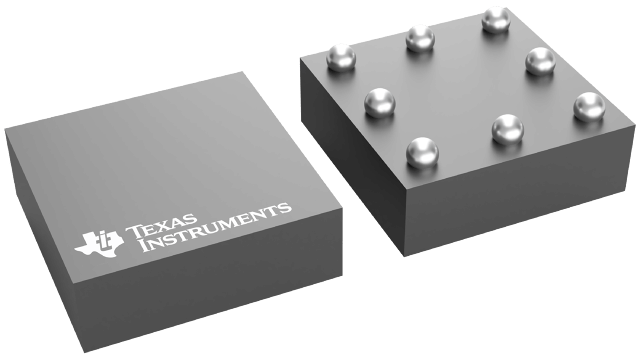

LMC555CTPX/NOPB Texas Instruments - Yeehing Electronics

World’s smallest 555 timer with low power, high accuracy and a Fmax of 3MHz

Pricing (USD)

Quantity Unit Price
1 — 99 0.926
100 — 249 0.713
250 — 999 0.525
1,000 + 0.26

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Timers & Support Products
RoHS Y
Series LMC555
Type Standard
Number of Internal Timers 1 Timer
Supply Voltage - Max 15 V
Supply Voltage - Min 1.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Mounting Style SMD/SMT
Package / Case DSBGA-8
Packaging Reel
Height 0.38 mm
Length 1.44 mm
Width 1.41 mm
Brand Texas Instruments
Propagation Delay - Max 100 ns (Typ)
High Level Output Current 50 mA
Low Level Output Current - 10 mA
Operating Supply Current 50 uA
Pd - Power Dissipation 568 mW
Product Type Timers & Support Products
Factory Pack Quantity 3000
Subcategory Clock & Timer ICs
Unit Weight 0.000081 oz

For more information, please refer to datasheet

Documents

LMC555CTPX/NOPB Datasheet

More Information

The LMC555 device is a CMOS version of the industry standard 555 series general-purpose timers. In addition to the standard package (SOIC, VSSSOP, and PDIP) the LMC555 is also available in a chip-sized package (8-bump DSBGA) using TI’s DSBGA package technology. The LMC555 offers the same capability of generating accurate time delays and frequencies as the LM555 but with much lower power dissipation and supply current spikes. When operated as a one-shot, the time delay is precisely controlled by a single external resistor and capacitor. In the astable mode the oscillation frequency and duty cycle are accurately set by two external resistors and one capacitor. The use of TI’s LMCMOS process extends both the frequency range and the low supply capability.
