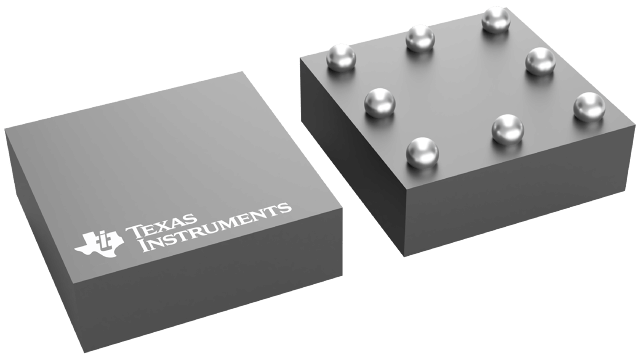

LMC8101TPX/NOPB Texas Instruments - Yeehing Electronics
Single, 10-V, 1-MHz operational amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.176 |
100 — 249 | 0.904 |
250 — 999 | 0.666 |
1,000 + | 0.33 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Operational Amplifiers - Op Amps |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | USMD-8 |
Supply Voltage - Max | 10 V |
Output Current per Channel | 20 mA |
Number of Channels | 1 Channel |
GBP - Gain Bandwidth Product | 1.3 MHz |
SR - Slew Rate | 1 V/us |
CMRR - Common Mode Rejection Ratio | 64 dB to 87 dB |
Ib - Input Bias Current | 64 pA |
Vos - Input Offset Voltage | 5 mV |
Supply Voltage - Min | 2.7 V |
Operating Supply Current | 700 uA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Shutdown | Shutdown |
Series | LMC8101 |
Packaging | Reel |
Features | Small Size, Shutdown |
Height | 0.38 mm |
Input Type | Rail-to-Rail |
Length | 1.41 mm |
Output Type | Rail-to-Rail |
Product | Operational Amplifiers |
Supply Type | Single, Dual |
Technology | CMOS |
Width | 1.41 mm |
Brand | Texas Instruments |
Dual Supply Voltage | +/- 3 V |
en - Input Voltage Noise Density | 33 nV/sqrt Hz |
In - Input Noise Current Density | 0.0015 pA/sqrt Hz |
Maximum Dual Supply Voltage | +/- 5 V |
Minimum Dual Supply Voltage | +/- 1.35 V |
Operating Supply Voltage | 3 V, 5 V, 9 V |
Product Type | Op Amps - Operational Amplifiers |
PSRR - Power Supply Rejection Ratio | 76 dB |
Factory Pack Quantity | 3000 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 102.8 dB |
Unit Weight | 0.000063 oz |
For more information, please refer to datasheet
Documents
LMC8101TPX/NOPB Datasheet |
More Information
The LMC8101 is a Rail‐to‐Rail Input and Output high performance CMOS operational amplifier. The LMC8101 is ideal for low voltage (2.7V to 10V) applications requiring Rail‐to‐Rail inputs and output. The LMC8101 is supplied in the die sized DSBGA as well as the 8 pin VSSOP packages. The DSBGA package requires 75% less board space as compared to the SOT-23 package. The LMC8101 is an upgrade to the industry standard LMC7101.
