Description

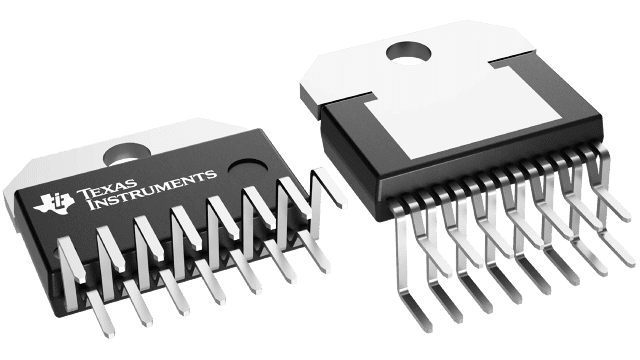

LMD18245T/NOPB Texas Instruments - Yeehing Electronics
3A, 55V DMOS Full-Bridge Motor Driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 18.177 |
| 100 — 249 | 15.878 |
| 250 — 999 | 12.242 |
| 1,000 + | 7.66 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Motor / Motion / Ignition Controllers & Drivers |
| RoHS | Y |
| Product | Brushed DC Motor Drivers |
| Type | Full Bridge |
| Operating Supply Voltage | 12 V to 55 V |
| Output Current | 3 A |
| Operating Supply Current | 8 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | Through Hole |
| Package / Case | TO-220-15 |
| Packaging | Tube |
| Operating Temperature Range | - 40 C to + 125 C |
| Series | LMD18245 |
| Brand | Texas Instruments |
| Product Type | Motor / Motion / Ignition Controllers & Drivers |
| Factory Pack Quantity | 20 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.240501 oz |
For more information, please refer to datasheet
Documents
| LMD18245T/NOPB Datasheet |
More Information
The LMD18245 full-bridge power amplifier incorporates all the circuit blocks required to drive and control current in a brushed type DC motor or one phase of a bipolar stepper motor. The multi-technology process used to build the device combines bipolar and CMOS control and protection circuitry with DMOS power switches on the same monolithic structure. The LMD18245 controls the motor current via a fixed off-time chopper technique.
