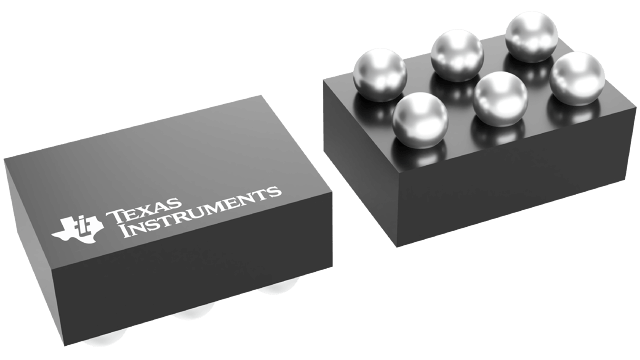

LMG1020YFFR Texas Instruments - Yeehing Electronics
7-A/5-A single channel gate driver with 5-V UVLO for nano second input pulses
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.03 |
| 100 — 249 | 2.655 |
| 250 — 999 | 1.862 |
| 1,000 + | 1.05 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | MOSFET Gate Drivers |
| Type | Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-6 |
| Number of Drivers | 1 Driver |
| Number of Outputs | 1 Output |
| Output Current | 7 A |
| Rise Time | 400 ps |
| Fall Time | 400 ps |
| Supply Voltage - Min | 4.75 V |
| Supply Voltage - Max | 5.25 V |
| Propagation Delay - Max | 4.5 ns |
| Operating Supply Current | 51 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMG1020 |
| Packaging | Reel |
| Features | low-side, ultra-fast |
| Operating Temperature Range | - 40 C to + 125 C |
| Technology | Si |
| Brand | Texas Instruments |
| Logic Type | TTL |
| Shutdown | Shutdown |
| Development Kit | LMG1020EVM-006 |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LMG1020YFFR Datasheet |
More Information
The LMG1020 device is a single, low-side driver designed for driving GaN FETs and logic-level MOSFETs in high-speed applications including LiDAR, time-of-flight, facial recognition, and any power converters involving low side drivers. The design simplicity of the LMG1020 enables extremely fast propagation delays of 2.5 nanoseconds and minimum pulse width of 1 nanosecond. The drive strength is independently adjustable for the pull-up and pull-down edges by connecting external resistors between the gate and OUTH and OUTL, respectively.
