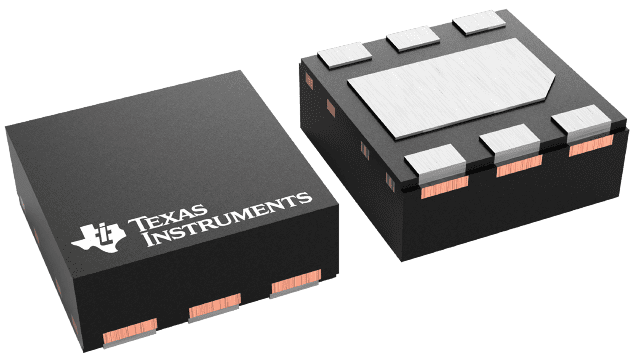

LMG1025QDEETQ1


YeeHing #: Y012-LMG1025QDEETQ1
Inventory: 6200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

LMG1025QDEETQ1 Texas Instruments - Yeehing Electronics

Automotive 7-A/5-A single-channel low-side gate driver with 5-V UVLO for narrow pulse applications

Pricing (USD)

Quantity Unit Price
1 — 99 5.382
100 — 249 4.388
250 — 999 3.449
1,000 + 1.71

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

LMG1025QDEETQ1 Datasheet

More Information

The LMG1025-Q1 is a single channel low-side enhancement-mode GaN FET and logic-level MOSFET driver for high switching frequency automotive applications. Narrow pulse width capability, fast switching specification, and small pulse distortion combine to significantly enhance LiDAR, ToF, and Power Converter performance. 1.25-ns output pulse width enables more powerful, eye-safe diode pulses. This, combined with 300-ns distortion, leads to longer-range, precise LiDAR/ToF systems. 2.9-ns propagation delay significantly improves the control loop response time and thus overall performance of the power converters. Split output allows the drive strength and timing to be independently adjusted through external resistors between OUTH, OUTL, and the FET gate.
