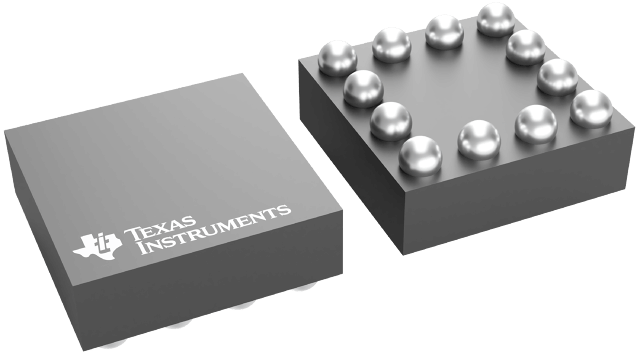

LMG1205YFXT Texas Instruments - Yeehing Electronics
1.2-A, 5-A 90-V, half bridge gate driver with 5-V UVLO for GaNFET and MOSFET
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.177 |
| 100 — 249 | 2.784 |
| 250 — 999 | 1.952 |
| 1,000 + | 1.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | Half-Bridge Drivers |
| Type | High Side, Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-12 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 5 A |
| Rise Time | 7 ns |
| Fall Time | 3.5 ns |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 5.5 V |
| Operating Supply Current | 2 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMG1205 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Technology | Si |
| Brand | Texas Instruments |
| Maximum Turn-Off Delay Time | 50 ns |
| Maximum Turn-On Delay Time | 50 ns |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000120 oz |
For more information, please refer to datasheet
Documents
| LMG1205YFXT Datasheet |
More Information
The LMG1205 is designed to drive both the high-side and the low-side enhancement mode Gallium Nitride (GaN) FETs in a synchronous buck, boost, or half-bridge configuration. The device has an integrated 100-V bootstrap diode and independent inputs for the high-side and low-side outputs for maximum control flexibility. The high-side bias voltage is generated using a bootstrap technique and is internally clamped at 5 V, which prevents the gate voltage from exceeding the maximum gate-source voltage rating of enhancement mode GaN FETs. The inputs of the LMG1205 are TTL logic compatible and can withstand input voltages up to 14 V regardless of the VDD voltage. The LMG1205 has split-gate outputs, providing flexibility to adjust the turnon and turnoff strength independently.
