Description

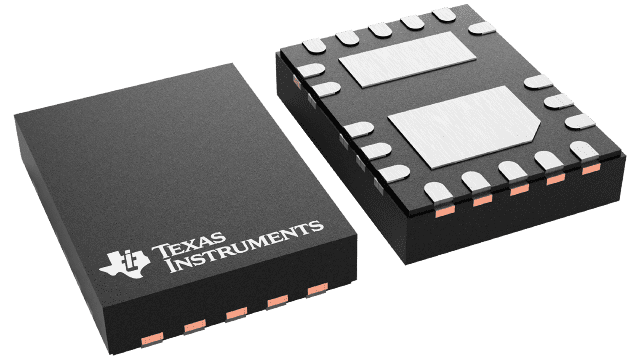

LMG1210RVRR Texas Instruments - Yeehing Electronics
1.5-A, 3-A, 200-V half bridge gate driver, 5-V UVLO and programmable dead-time for GaNFET and MOSFET
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 4.077 |
100 — 249 | 3.324 |
250 — 999 | 2.613 |
1,000 + | 1.55 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
LMG1210RVRR Datasheet |
More Information
The LMG1210 is a 200-V, half-bridge MOSFET and Gallium Nitride Field Effect Transistor (GaN FET) driver designed for ultra-high frequency, high-efficiency applications that features adjustable deadtime capability, very small propagation delay, and 3.4-ns high-side low-side matching to optimize system efficiency. This part also features an internal LDO which ensures a gate-drive voltage of 5-V regardless of supply voltage.
