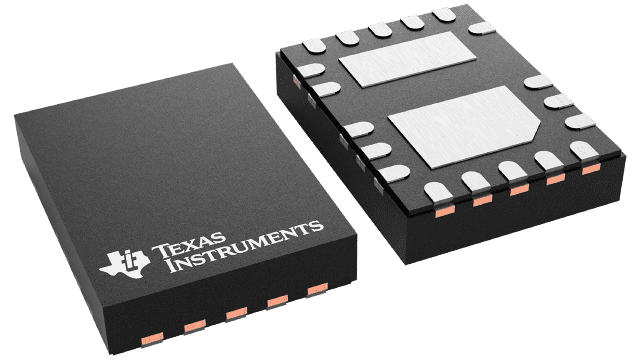

LMG1210RVRT Texas Instruments - Yeehing Electronics
1.5-A, 3-A, 200-V half bridge gate driver, 5-V UVLO and programmable dead-time for GaNFET and MOSFET
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.893 |
| 100 — 249 | 3.989 |
| 250 — 999 | 3.135 |
| 1,000 + | 1.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | MOSFET Gate Drivers |
| Type | High Side, Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-19 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 3 A |
| Rise Time | 0.5 ns |
| Fall Time | 0.5 ns |
| Supply Voltage - Min | 4.75 V |
| Supply Voltage - Max | 18 V |
| Propagation Delay - Max | 20 ns |
| Operating Supply Current | 380 uA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | LMG1210 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 5 V |
| Technology | GaN |
| Brand | Texas Instruments |
| Logic Type | TTL |
| Off Time - Max | 18 ns |
| Maximum Turn-Off Delay Time | 18 ns |
| Maximum Turn-On Delay Time | 18 ns |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Rds On - Drain-Source Resistance | 400 mOhms |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| LMG1210RVRT Datasheet |
More Information
The LMG1210 is a 200-V, half-bridge MOSFET and Gallium Nitride Field Effect Transistor (GaN FET) driver designed for ultra-high frequency, high-efficiency applications that features adjustable deadtime capability, very small propagation delay, and 3.4-ns high-side low-side matching to optimize system efficiency. This part also features an internal LDO which ensures a gate-drive voltage of 5-V regardless of supply voltage.
