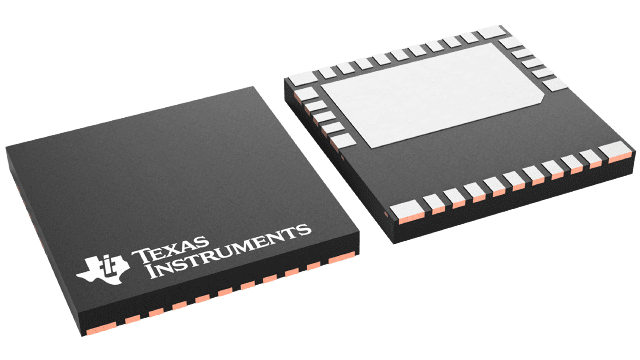

LMG3411R070RWHR Texas Instruments - Yeehing Electronics
600-V 70-mΩ GaN with integrated driver and cycle-by-cycle overcurrent protection
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 9.628 |
100 — 249 | 8.41 |
250 — 999 | 6.484 |
1,000 + | 4.06 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Gate Drivers |
RoHS | Y |
Product | MOSFET Gate Drivers |
Type | High Side, Low Side |
Mounting Style | SMD/SMT |
Package / Case | QFN-32 |
Number of Drivers | 1 Driver |
Number of Outputs | 1 Output |
Rise Time | 15 ns |
Fall Time | 4.2 ns |
Supply Voltage - Min | 9.5 V |
Supply Voltage - Max | 18 V |
Propagation Delay - Max | 36 ns |
Operating Supply Current | 43 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | LMG3411R070 |
Packaging | Reel |
Operating Temperature Range | - 40 C to + 125 C |
Output Voltage | 5 V |
Technology | Si |
Brand | Texas Instruments |
Maximum Turn-Off Delay Time | 10 ns |
Maximum Turn-On Delay Time | 12 ns |
Moisture Sensitive | Yes |
Product Type | Gate Drivers |
Rds On - Drain-Source Resistance | 70 mOhms |
Factory Pack Quantity | 2000 |
Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
LMG3411R070RWHR Datasheet |
More Information
The LMG341xR070 GaN power stage with integrated driver and protection enables designers to achieve new levels of power density and efficiency in power electronics systems. The LMG341x’s inherent advantages over silicon MOSFETs include ultra-low input and output capacitance, zero reverse recovery to reduce switching losses by as much as 80%, and low switch node ringing to reduce EMI. These advantages enable dense and efficient topologies like the totem-pole PFC.
