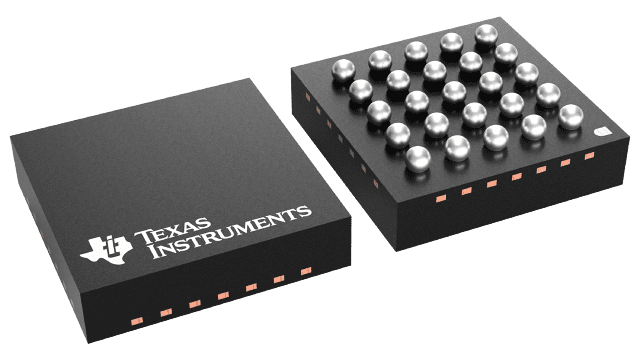

LMH0307GRE/NOPB Texas Instruments - Yeehing Electronics
3G HD/SD SDI dual output cable driver with cable detect
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.987 |
| 100 — 249 | 7.85 |
| 250 — 999 | 6.053 |
| 1,000 + | 3.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Video ICs |
| RoHS | Y |
| Type | Video Cable Driver |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 1.3 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | CSBGA-25 |
| Packaging | Reel |
| Data Rate | 3 GB/s |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | LMH0307 |
| Brand | Texas Instruments |
| Development Kit | SD307EVK/NOPB |
| Pd - Power Dissipation | 230 mW |
| Product Type | Video ICs |
| Factory Pack Quantity | 250 |
| Subcategory | Video ICs |
For more information, please refer to datasheet
Documents
| LMH0307GRE/NOPB Datasheet |
More Information
The LMH0307 3 Gbps HD/SD SDI Dual Output Cable Driver with Cable Detect is designed for use in SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M serial digital video applications. The LMH0307 implements two complementary output drivers and drives 75Ω transmission lines (Belden 1694A, Belden 8281, or equivalent) at data rates up to 2.97 Gbps.
