Description

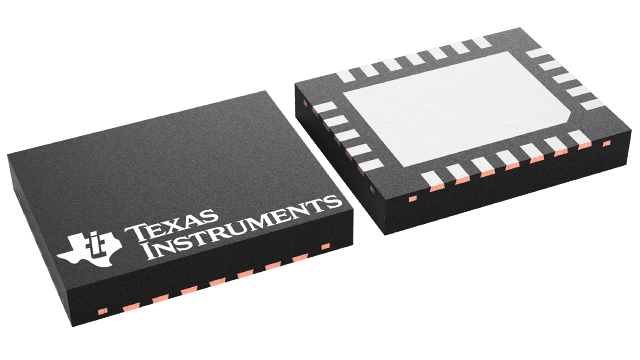

LMH0346SQE/NOPB Texas Instruments - Yeehing Electronics
3G HD/SD SDI reclocker with dual differential outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 24.908 |
| 100 — 249 | 22.141 |
| 250 — 999 | 18.201 |
| 1,000 + | 11.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Video ICs |
| RoHS | Y |
| Type | Reclocker |
| Operating Supply Voltage | 3.3 V |
| Operating Supply Current | 111 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-24 |
| Packaging | Reel |
| Data Rate | 3 GB/s |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | LMH0346 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 370 mW |
| Product Type | Video ICs |
| Factory Pack Quantity | 250 |
| Subcategory | Video ICs |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| LMH0346SQE/NOPB Datasheet |
More Information
The LMH0346 3 Gbps HD/SD SDI Reclocker retimes serial digital video data conforming to the SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) standards. The LMH0346 operates at serial data rates of 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, and 2.97 Gbps. The LMH0346 supports DVB-ASI operation at 270 Mbps.
