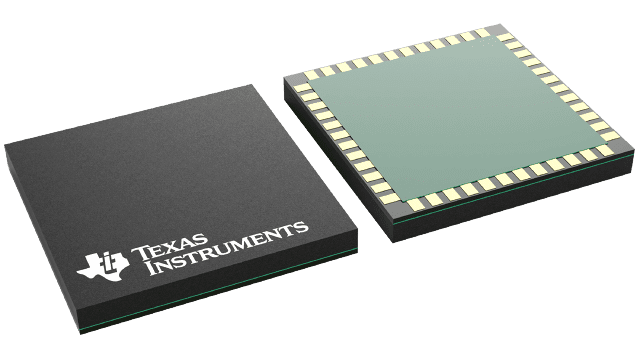

LMH0387SLE/NOPB Texas Instruments - Yeehing Electronics

3G HD/SD SDI configurable I/O adaptive cable equalizer / cable driver

Pricing (USD)

Quantity	Unit Price
1 — 99	22.018
100 — 249	19.233
250 — 999	14.829
1,000 +	10.61

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Equalizers
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TLGA-48
Product	Cable Equalizers
Data Rate	2970 Mb/s
Operating Supply Voltage	3.3 V
Operating Supply Current	91 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	LMH0387
Packaging	Reel
Input Voltage	3.3 V
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Development Kit	SD387EVK/NOPB
Moisture Sensitive	Yes
Product Type	Equalizers
Factory Pack Quantity	250
Subcategory	Equalizers

For more information, please refer to datasheet

Documents

LMH0387SLE/NOPB Datasheet

More Information

The LMH0387 3 Gbps HD/SD SDI Configurable I/O Adaptive Cable Equalizer / Cable Driver provides a single chip interface to a BNC. The device can be configured either in the input mode as an equalizer to receive data over coaxial cable or in the output mode as a cable driver to transmit data over coaxial cable. The same I/O pin is used both for the input and the output functions of the device, allowing the system designer the flexibility to use a BNC attached to the device as either an input or an output.
