Texas Instruments
LMH2110TMX/NOPB
LMH2110TMX/NOPB
Regular price
$2.40 USD
Regular price
Sale price
$2.40 USD
Unit price
per
Couldn't load pickup availability
LMH2110TMX/NOPB Texas Instruments - Yeehing Electronics
8 GHz Logarithmic RMS Power Detector With 45 dB Dynamic Range
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.994 |
| 100 — 249 | 1.647 |
| 250 — 999 | 1.183 |
| 1,000 + | 2.40 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Detector |
| RoHS | Y |
| Type | Logarithmic RMS |
| Frequency Range | 50 MHz to 8000 MHz |
| Configuration | Single |
| Operating Supply Voltage | 2.7 V to 5 V |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |

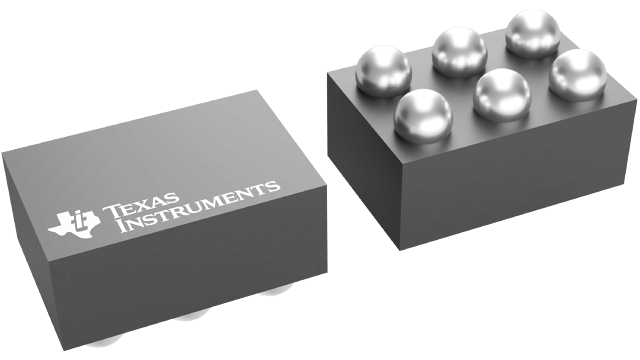

| Package / Case | DSBGA-6 |
| Packaging | Reel |
| Accuracy | 0.5 dB |
| Series | LMH2110 |
| Brand | Texas Instruments |
| Development Kit | LMH2110TMEVAL/NOPB |
| Product Type | RF Detector |
| Factory Pack Quantity | 3000 |
| Subcategory | Wireless & RF Integrated Circuits |
| Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
| LMH2110TMX/NOPB Datasheet |
More Information
The LMH2110 is a 45-dB Logarithmic RMS power detector particularly suited for accurate power measurement of modulated RF signals that exhibit large peak-to-average ratios; that is, large variations of the signal envelope. Such signals are encountered in W-CDMA and LTE cell phones. The RMS measurement topology inherently ensures a modulation insensitive measurement.
