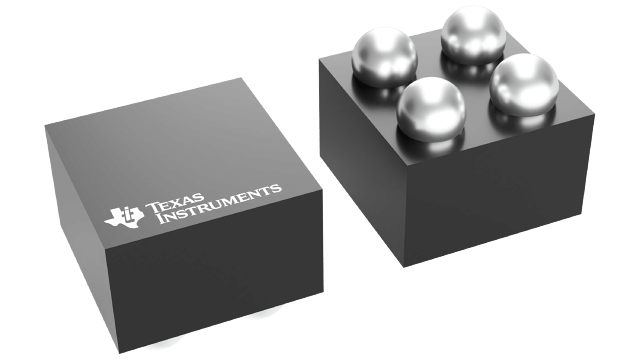

LMH2121TMX/NOPB Texas Instruments - Yeehing Electronics
3 GHz Fast Responding Linear Power Detector with 40dB Dynamic Range
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.691 |
| 100 — 249 | 1.397 |
| 250 — 999 | 1.003 |
| 1,000 + | 0.53 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Detector |
| RoHS | Y |
| Type | Linear Fast-Responding |
| Frequency Range | 100 MHz to 3000 MHz |
| Configuration | Single |
| Operating Supply Voltage | 2.6 V to 3.3 V |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Package / Case | DSBGA-4 |
| Packaging | Reel |
| Accuracy | 0.2 dB |
| Series | LMH2121 |
| Brand | Texas Instruments |
| Product Type | RF Detector |
| Factory Pack Quantity | 3000 |
| Subcategory | Wireless & RF Integrated Circuits |
For more information, please refer to datasheet
Documents
| LMH2121TMX/NOPB Datasheet |
More Information
The LMH2121 is an accurate fast-responding power detector / RF envelope detector. Its response between an RF input signal and DC output signal is linear. The typical response time of 165 ns makes the device suitable for an accurate power setting in handsets during a rise time of RF transmission slots. It can be used in all popular communications standards: 2G/3G/4G/WAP.
