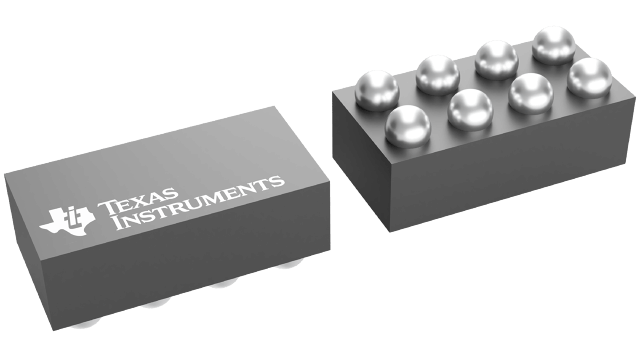

Texas Instruments
LMH2191TME/NOPB
LMH2191TME/NOPB
Regular price
$0.82 USD
Regular price
Sale price
$0.82 USD
Unit price
per
Couldn't load pickup availability
LMH2191TME/NOPB Texas Instruments - Yeehing Electronics
Dual-channel 52-MHz clock tree driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.639 |
| 100 — 249 | 2.179 |
| 250 — 999 | 1.566 |
| 1,000 + | 0.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Clock Drivers & Distribution |
| RoHS | Y |
| Series | LMH2191 |
| Multiply / Divide Factor | 1 |
| Output Type | LVCMOS |
| Max Output Freq | 52 MHz |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 2.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Packaging | Reel |
| Input Type | Clock |
| Number of Outputs | 2 |
| Type | Clock Buffers/Drivers |
| Brand | Texas Instruments |
| Operating Supply Current | 1.4 mA |
| Product Type | Clock Drivers & Distribution |
| Factory Pack Quantity | 250 |
| Subcategory | Clock & Timer ICs |
| Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
| LMH2191TME/NOPB Datasheet |
More Information
The LMH2191 is a dual-channel clock tree driver that supplies a digital system clock to peripherals in mobile handsets or other applications. It provides a solution to clocking issues such as limited drive capability for fanout or longer traces. It also provides protection of the master clock from varying loads and frequency pulling effects, isolation from noisy modules, and crosstalk isolation. It has very low phase noise which enables it to drive sensitive modules such as Wireless LAN and Bluetooth.
