Texas Instruments
LMH3401IRMST
LMH3401IRMST
Regular price
$6.54 USD
Regular price
Sale price
$6.54 USD
Unit price
per
Couldn't load pickup availability

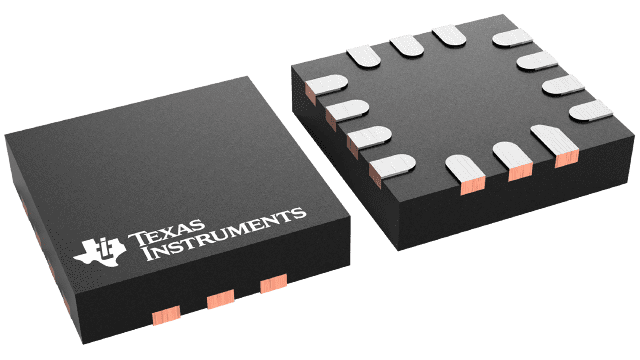

LMH3401IRMST Texas Instruments - Yeehing Electronics
7-GHz, Ultra-Wideband, Fully Differential Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 15.521 |
| 100 — 249 | 13.558 |
| 250 — 999 | 10.453 |
| 1,000 + | 6.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | LMH3401 |
| Number of Channels | 1 Channel |
| SR - Slew Rate | 18 kV/us |
| CMRR - Common Mode Rejection Ratio | 72 dB to 72 dB |
| Vos - Input Offset Voltage | 1.2 mV |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 3.3 V |
| Operating Supply Current | 55 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-14 |
| Packaging | Reel |
| Amplifier Type | Differential |
| Features | Shutdown |
| Input Type | Single Ended, Differential |
| Output Type | Differential |
| Product | Differential Amplifiers |
| Brand | Texas Instruments |
| Input Voltage Range - Max | 5.5 V |
| Shutdown | No Shutdown |
| 3 dB Bandwidth | 7 GHz |
| Maximum Input Resistance | 29 Ohms |
| Moisture Sensitive | Yes |
| NF - Noise Figure | 9 dB |
| Operating Supply Voltage | 5 V |
| Product Type | Differential Amplifiers |
| PSRR - Power Supply Rejection Ratio | 84 dB |
| Settling Time | 1 ns |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Unit Weight | 0.000353 oz |
For more information, please refer to datasheet
Documents
| LMH3401IRMST Datasheet |
More Information
The LMH3401 is a very high-performance, differential amplifier optimized for radio frequency (RF), intermediate frequency (IF), or high-speed, time-domain applications. This device is ideal for dc- or ac-coupled applications that require a single-ended to differential conversion when driving an analog-to-digital converter (ADC). The LMH3401 generates very low levels of second-order and third-order distortion when operating in single-ended-input to differential-output or differential-input to differential-output mode.
