Texas Instruments

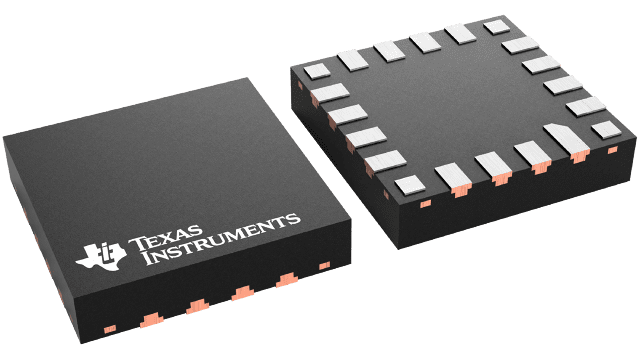

LMH6401IRMZT
LMH6401IRMZT
Regular price
$9.25 USD
Regular price
Sale price
$9.25 USD
Unit price
per
Couldn't load pickup availability
LMH6401IRMZT Texas Instruments - Yeehing Electronics
4.5 GHz ultra wideband digital variable gain amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 19.186 |
| 100 — 249 | 16.759 |
| 250 — 999 | 12.922 |
| 1,000 + | 9.25 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Differential Amplifiers |
| RoHS | Y |
| Series | LMH6401 |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | - |
| SR - Slew Rate | 17.4 kV/us |
| CMRR - Common Mode Rejection Ratio | 38.4 dB |
| Output Current per Channel | - |
| Ib - Input Bias Current | - |
| Vos - Input Offset Voltage | - |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4 V |
| Operating Supply Current | 69 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-16 |
| Packaging | Reel |
| Amplifier Type | VGA |
| Input Type | Differential |
| Output Type | Differential |
| Product | Differential Amplifiers |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| 3 dB Bandwidth | 4.5 GHz |
| Maximum Input Resistance | 112 Ohms |
| Moisture Sensitive | Yes |
| NF - Noise Figure | 8 dB |
| Product Type | Differential Amplifiers |
| PSRR - Power Supply Rejection Ratio | 70 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Amplifier ICs |
| Voltage Gain dB | 26 dB |
| Unit Weight | 0.001443 oz |
For more information, please refer to datasheet
Documents
| LMH6401IRMZT Datasheet |
More Information
The LMH6401 is a wideband, digitally-controlled, variable-gain amplifier (DVGA) designed for dc to radio frequency (RF), intermediate frequency (IF), and high-speed time-domain applications. The device is an ideal analog-to-digital converter (ADC) driver for dc- or ac-coupled applications that require an automatic gain control (AGC).
