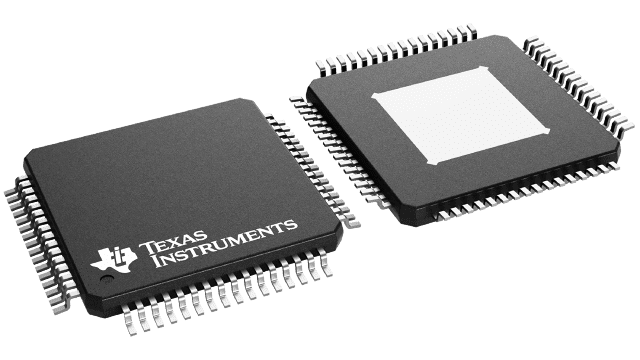

LMH6583YA/NOPB Texas Instruments - Yeehing Electronics
5-V, crosspoint/exchange, 16-input 8-output, analog switch with a gain of 2
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 62.508 |
100 — 249 | 55.563 |
250 — 999 | 45.676 |
1,000 + | 28.60 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog & Digital Crosspoint ICs |
RoHS | Y |
Series | LMH6583 |
Product | Analog Crosspoint Switches |
Configuration | 16 x 8 |
Data Rate | - |
Input Type | - |
Output Type | - |
Operating Supply Voltage | 3 V to 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | HTQFP-64 |
Packaging | Tray |
Bandwidth | 550 MHz |
Supply Type | Dual |
Brand | Texas Instruments |
Development Kit | LMH6583EVAL |
Moisture Sensitive | Yes |
Product Type | Analog & Digital Crosspoint ICs |
Factory Pack Quantity | 160 |
Subcategory | Communication & Networking ICs |
Supply Voltage - Max | 5.5 V |
Supply Voltage - Min | 3 V |
Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
LMH6583YA/NOPB Datasheet |
More Information
The LMH family of products is joined by the LMH6583, a high speed, non-blocking, analog, crosspoint switch. The LMH6583 is designed for high speed, DC coupled, analog signals like high resolution video (UXGA and higher). The LMH6583 has 16 inputs and 8 outputs. The non-blocking architecture allows an output to be connected to any input, including an input that is already selected. With fully buffered inputs the LMH6583 can be impedance matched to nearly any source impedance. The buffered outputs of the LMH6583 can drive up to two back terminated video loads (75Ω load). The outputs and inputs also feature high impedance inactive states allowing high performance input and output expansion for array sizes such as 16 x 16 or 32 x 8 by combining two devices. The LMH6583 is controlled with a 4 pin serial interface. Both single serial mode and addressed chain modes are available.
