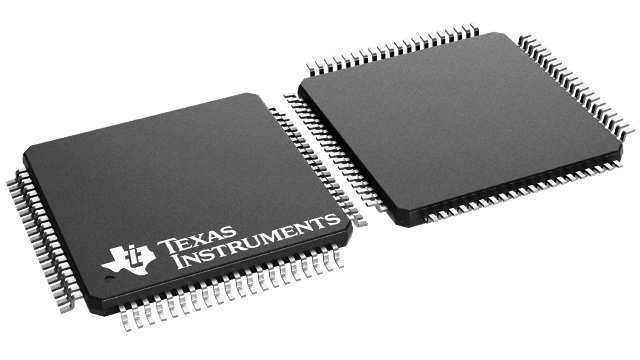

LMH6586VS/NOPB Texas Instruments - Yeehing Electronics
5-V, 32-input 16-output video crosspoint switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 63.388 |
| 100 — 249 | 56.345 |
| 250 — 999 | 46.319 |
| 1,000 + | 29.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog & Digital Crosspoint ICs |
| RoHS | Y |
| Series | LMH6586 |
| Product | Video Crosspoint Switches |
| Configuration | 32 x 16 |
| Data Rate | - |
| Input Type | - |
| Output Type | - |
| Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TQFP-80 |
| Packaging | Tray |
| Bandwidth | 66 MHz |
| Supply Type | Single |
| Brand | Texas Instruments |
| Development Kit | LMH6586EVAL |
| Moisture Sensitive | Yes |
| Product Type | Analog & Digital Crosspoint ICs |
| Factory Pack Quantity | 119 |
| Subcategory | Communication & Networking ICs |
| Supply Voltage - Max | 5.5 V |
| Supply Voltage - Min | 4.5 V |
| Unit Weight | 0.018117 oz |
For more information, please refer to datasheet
Documents
| LMH6586VS/NOPB Datasheet |
More Information
The LMH6586 is a non-blocking analog video crosspoint switch designed for routing standard NTSC or PAL composite video signals. The non-blocking architecture allows any of the 32 inputs to be connected to any of the 16 outputs, including any input that is already connected. Each input has an integrated DC restore clamp for biasing of the AC-coupled video signal. The output buffers have a common selectable gain setting of 1X or 2X and can drive loads of 150Ω.
